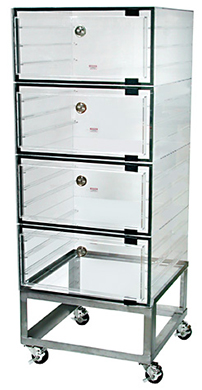

These large capacity multi-chamber portable desiccator storage cabinets are safer than individual
stacked units and allow for easy transportation between stations. All large capacity multi-chamber
desiccator cabinets are mounted on stainless steel support carts with lockable casters. The clear
acrylic enclosure allows for easy observation and locating your items. The amber units are effective
for protection of light sensitive materials from harmful UV light.
The acrylic desiccator cabinets are constructed of ¼" thickness acrylic material, featuring
easy-open doors and full visibility for all models. Shelf supports strips are provided at 2" (51mm)
intervals. Each air tight chamber includes two shelves. The door construction incorporates anti-warp
reinforcement to ensure a flat sealing surface. Each chamber consists of a 24 x 24 x 12" cubicle with
interior dimensions of 23.5 x 23.5 x 11.75" with a door opening of 22.5 x 9.25"
The Static Dissipative PVC models are constructed from ESD safe material (only available in clear).
The dissipative PVC has a surface resistivity of only 105-108 Ohms Square with a surface potential of
less than 15V. Decaying time is less than one second.
Features and benefits of the large capacity desiccators:
- Full length hinges
- Two heavy duty "swell" type latches to ensure even tension on the sealing gasket
- Closed cellular sealing PVC gaskets with "Gasket Guard" for improved sealing
- All doors are reinforced framework to ensure flat sealing
- Each chamber has a hygrometer (RH) in the door
- All shelves include perforated slots to ensure optimum gas flow
- Plenum style available for gas feed through back panel and nylon gas nipple
(1/8NPT with 1/4 hose barb fitting) for each chamber
- Each unit provided with stainless steel cart with casters (2 with brakes)
- Available in clear, clear static dissipative, and amber
- Maximum 10lb load on shelves
Accessories available are:
- Additional shelves
- Interchangeable stainless steel shelves
- Flow meters and pressure relieve valves
- Controlled purge system
Flowmeters, Pressure Relief Valves and other Optional Accessories for PL Desiccator Cabinets
|
