PTFE beakers

PTFE Beakers

These beakers are opaque, rigid, nonporous, smooth surfaced and resist all chemicals except molten alkali metals and fluorine. They are an efficient substitute for platinum and can withstand 260°C continuously or 300°C for short periods. They have flat bases suitable for heating on controlled electric hot plates.

PTFE Beakers are excellent for use in the PELCO BioWave® Pro+ Microwave Processor.

more Beakers
Product No.
Volume (ml)
Height (mm)
Outer Diameter (mm)
Inside Diameter (mm)
21201
1
18
13
12
21202
5
26
18
17
21204
25
47
32
28
21206
100
68
54
49
21207
250
97
66
61

Prod # Description Unit Price Order / Quote
21201 1ml PTFE Beaker, 13mm OD, 12mm ID, 18mm H each $24.25
Qty:
21202 5ml PTFE Beaker, 20mm OD, 17mm ID, 26mm H each 30.40
Qty:
21204 25ml PTFE Beaker, 32mm OD, 28mm ID, 47mm H each 40.15
Qty:
21206 100ml PTFE Beaker, 54mm OD, 49mm ID, 68mm H each 56.15
Qty:
21207 250ml PTFE Beaker, 66mm OD, 61mm ID, 97mm H each 115.00
Qty:



PTFE test tubes with screw caps

PTFE Test Tubes with Screw Caps

Test tubes are isostatically molded in pure PTFE and feature heavy wall construction. They are guaranteed to be chemically inert and crack-free. May be used at temperatures ranging from -196°C to +280°C (-321°F to +536°F). Three sizes available: 8, 17 and 50ml.
Product No.
Volume (ml)
Height (mm)
Diameter (mm)
21300-12
8
100
12
21300-13
17
100
18
21300-14
50
140
25

Prod # Description Unit Price Order / Quote
21300-12 8ml PTFE Test Tube with Screw Cap, 100mm H, Ø12mm each $32.00
Qty:
21300-13 17ml PTFE Test Tube with Screw Cap, 100mm H, Ø18mm each 39.00
Qty:
21300-14 50ml PTFE Test Tube with Screw Cap, 140mm H, Ø25mm each 61.00
Qty:



PTFE funnels

PTFE Funnels

Funnels are isostatically molded in pure PTFE and feature heavy wall construction and a super smooth non-stick internal surface. Totally chemically inert and can be used at temperatures ranging from -196°C to +280°C (-321°F to +536°F). Ideally suited for cryo applications. Three sizes available: 50, 70 and 100mm diameter.
Product No.
Rim Diameter (mm)
Stem Diameter (mm)
Overall Height (mm)
21300-50
50
10
85
21300-70
70
12
110
21300-100
100
14
170

Prod # Description Unit Price Order / Quote
21300-50 PTFE Funnel, Ø50mm Rim, Ø10mm Stem, 85mm H each $36.00
Qty:
21300-70 PTFE Funnel, Ø70mm Rim, Ø12mm Stem, 110mm H each 53.00
Qty:
21300-100 PTFE Funnel, Ø100mm Rim, Ø14mm Stem, 170mm H each 110.00
Qty:



PTFE Crucibles

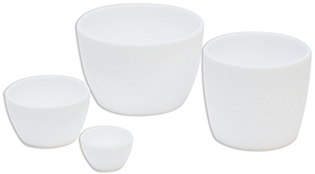

PTFE Crucibles

PTFE crucibles are molded from pure PTFE, a chemically inert material. Smooth surfaces avoid contamination and are easily cleaned. Features are:

  • Compatible with cryo temperatures to moderate heating -196°C to +280°C (-321°F to +536°F)
  • Chemically inert
  • Crack-free

more Crucibles
Product No.
Form
Capacity
Height
Top
Diameter
Wall Thickness
Lid
844-5T
Low
5ml
16mm
27mm
2.1mm
Without
844-25T
Low
25ml
26mm
44mm
2.1mm
Without
844-75T
Low
75mm
41mm
56mm
2.6mm
Without
844-100T
Low
100ml
45mm
60mm
2.6mm
Without

Prod # Description Unit Price Order / Quote
844-5T PTFE Crucible without Lid, 5ml each $16.50
Qty:
844-25T PTFE Crucible without Lid, 25ml each 25.30
Qty:
844-75T PTFE Crucible without Lid, 75ml each 36.30
Qty:
844-100T PTFE Crucible without Lid, 100ml each 46.20
Qty:



ptfe scoop

PTFE Scoop

Scoops are made of totally chemically inert PTFE. Smooth inner surface for ease of use. Scoop is 20mm high, 30mm wide and 80mm long. Overall length is 140mm.

Prod # Description Unit Price Order / Quote
21300-20 PTFE Scoop, 20mm H x 30mm W x 80mm L each $48.00
Qty:
