Embedding Overview

Snap-Fit® Gelatin Capsules & Holders

embedding, specimen storage
popular for electron microscopy embedding

snap fit gelatin capsules

Current techniques involving the use of acrylic resins and dry ice temperatures for electron microscopy embedding require ultraviolet polymerization in many instances. Gelatin capsules have found a renewed popularity with these applications. Also useful for specimen storage, shipping and carrying of small specimens, apertures, and calibration specimens.

Be sure to pre-dry capsules before use. Flushing with dry nitrogen is recommended before resins are added to the capsules.

Size Length
mm 		Diameter
mm 		Volume
ml
000 26.14 9.55 1.37
00 23.30 8.18 0.95
0 21.20 7.34 0.68
1 19.00 6.63 0.50
2 17.50 6.07 0.37
3 15.50 5.56 0.30
4 13.90 5.05 0.21

Prod # Description Unit Price Order / Quote
130-12 Snap-Fit Gelatin Capsules, size 000 pkg/1000 $80.00
Qty:
130-14 Snap-Fit Gelatin Capsules, size 00 pkg/1000 23.30
Qty:
130-16 Snap-Fit Gelatin Capsules, size 0 pkg/1000 24.00
Qty:
130-18 Snap-Fit Gelatin Capsules, size 1 pkg/1000 13.97
Qty:
130-19 Snap-Fit Gelatin Capsules, size 2 pkg/1000 34.70
Qty:
130-21 Snap-Fit Gelatin Capsules, size 3 pkg/1000 34.70
Qty:
130-20 Snap-Fit Gelatin Capsules, size 4 pkg/1000 34.70
Qty:




Gelatin Capsule Holders

holds 18 or 32 gelatin capsules for embedding


gelatin capsule holder gelatin capsule holder
Gelatin Capsule Holders for 18 Capsules
#130-12H shown holds 18 size 000 capsules		 Gelatin Capsule Holders for 32 Capsules

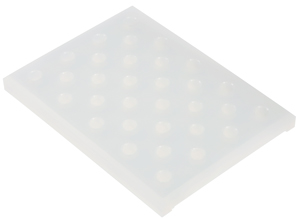

#130-21H shown holds 32 size 3 capsules


Prod # Description Unit Price Order / Quote
130-12H NEW Gelatin Size 000 Capsule Holder, Holds 18 Capsules each $25.00
Qty:
130-15 Gelatin 00 Capsule Holder, Holds 18 Capsules each 25.00
Qty:
130-16H NEWGelatin Size 0 Capsule Holder, Holds 18 Capsules each 25.00
Qty:
130-18H NEW Gelatin Size 1 Capsule Holder, Holds 18 Capsules each 25.00
Qty:
130-19H NEW Gelatin Size 2 Capsule Holder, Holds 32 Capsules each 25.00
Qty:
130-21H NEW Gelatin Size 3 Capsule Holder, Holds 32 Capsules each 25.00
Qty:
130-20H NEW Gelatin Size 4 Capsule Holder, Holds 32 Capsules each 25.00
Qty:




Ambrose Mesa Mold

holds 12 size 00 gelatin capsules for embedding

ambrose mesa moldambrose mesa mold
Specimens are embedded against the large flat bottom surface of the mold, 7mm in diameter, for improved orientation. A BEEM® size 00 capsule with the tip removed can be inserted part way into the cavity, before filling with the plastic. Blue silicone rubber. Maximum temperature: 218°C (425°F).

Number of Cavities: 12
Numbering Outside of Cavities: 1-12
Mold Size: 97 x 38 x 11mm thick

Prod # Description Unit Price Order / Quote
107 Ambrose Mesa Mold each $19.50
Qty:
