G-1 Silicon Calibration Specimen

Details of the Pelcotec™ G-1 Calibration Specimen

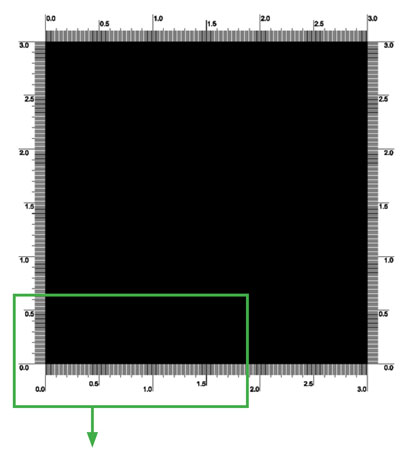

G-1 Calibration Specimen 4 x 4mm die with 3 x 3mm grid with 1µm pitch
X and Y mm scale fiducial finders
Unique serial number

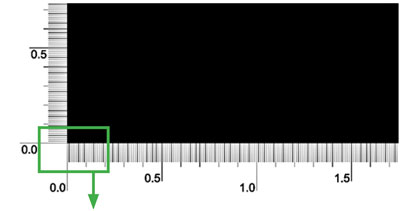

G-1 Calibration Specimen Close-up of major (1.0 and 0.5mm) and
minor (0.1mm) fiducial marks

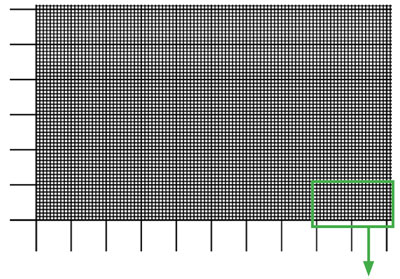

G-1 Calibration Specimen Close-up of 1µm pitch grid with 10µm and 100µm lines

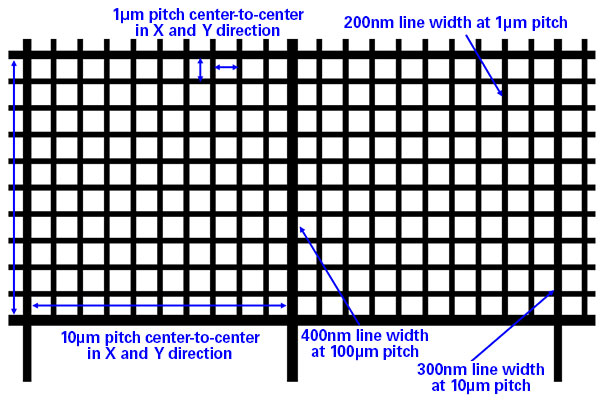

G-1 Calibration Specimen Enlarged view of grid pattern

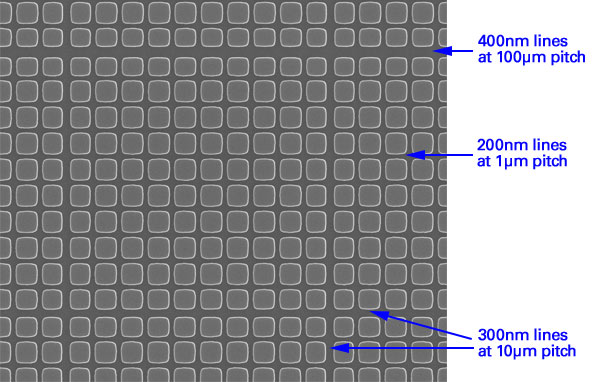

SEM image of grid pattern

633-1 Sample Certificate of Traceability (157KB PDF)

633-11 Sample Certificate of Calibration (185KB PDF)
