PELCO Ultra 19 Oil

PELCO® Ultra 19 Vacuum Pump Oil

Premium quality vacuum pump oil for single and dual stage rotary pumps. Extra refined for increased lubrication, enhanced sealing and reduced back streaming. Excellent oil for rotary backing pumps on high vacuum systems, electron microscopes and mass spectrometers. PELCO® Ultra 19 vacuum pump oil is suitable for our VRP, RVP and VRI Rotary Vane Pumps. Compatible with rotary vane pumps from Edwards, Adixen, Alcatel, Varian, Agilent, Leybold, Oerlikon, Ulvac, Sargent-Welch, Ilmvac and other brands. Fully comparable with Edwards Ultragrade 19 and Inland 19 Ultra rotary pump oil. Great cost savings compared to more expensive brand products. Indefinite shelf life when stored in unopened container at ambient temperatures out of direct sunlight.

SDS (93KB PDF)
Typical Properties of PELCO® Ultra 19 Vacuum Pump Oil

Prod # Description Unit Qty Price Order / Quote
891-31 PELCO® Ultra 19 Vacuum Pump Oil 1 liter 1-3 $13.25
Qty:
4+ 12.59
891-34 PELCO® Ultra 19 Vacuum Pump Oil 1 gallon 1+ 44.00
Qty:




edwards diffusion pump oil

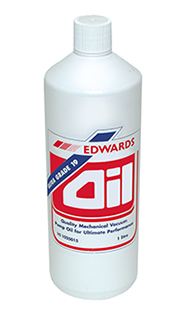

Ultragrade 19 Vacuum Pump Oil

Mineral oil derivative ideally suited for mechanical rotary vacuum pumps. Light end fractions are removed through molecular distillation resulting in lower vapor pressures and reduced backstreaming compared to undistilled refinery products. Offers reduced maintenance costs, longer fluid life and cooler running. Suitable for single and dual rotary vane pumps from VRL, Edwards, Alcatel, Adixen, Varian, Agilent, Leybold, Oerlikon, Sargent-Welch, Ulvac, Ilmvac, and other brands. Indefinite shelf life when stored in unopened container at ambient temperatures out of direct sunlight.

SDS (66KB PDF)
Typical Properties of Ultra Grade 19 Oil

Prod # Description Unit Qty Price Order / Quote
891-35 Ultragrade 19 Rotary Pump Oil 1 liter 1-3 $27.00
Qty:
4+ 24.84
891-36 Ultragrade 19 Rotary Pump Oil 4 liters 1+ 98.00
Qty:




pfeiffer p3 oil

Pfeiffer P3 Vacuum Pump Oil

Clear, monograde oil that has the correct viscosity for Pfeiffer Rotary vacuum pumps, excellent sealing and lubrication properties, low vapor pressure and reduced back streaming. Used also for Prod. No. 7010 and 7010-220 Rotary Pumps. Indefinite shelf life when stored in unopened container at ambient temperatures out of direct sunlight.

SDS (98KB PDF)
Typical Properties of Pfeiffer P3 Vacuum Pump Oil

Prod # Description Unit Price Order / Quote
891-38 Pfeiffer P3 Vacuum Pump Oil 1 liter $31.65
Qty:
891-25 Pfeiffer P3 Vacuum Pump Oil 20 liters 511.90
Qty:




Polypropylene Funnels, set of three

Polypropylene Funnels, Set of Three

Polypropylene funnels; useful when filling a vacuum pump with oil or draining the oil from the pumps. Lightweight and durable. Set of three with 75, 150 and 500ml capacity.

Volume Diameter Stem Length Overall Length
75ml 83mm (3.3") 75mm (2.9") 145mm (5.7")
150ml 100mm (3.9") 83mm (3.3") 165mm (6.5")
500ml 150mm (5.9") 110mm (4.3") 245mm (9.6")

Prod # Description Unit Price Order / Quote
12938-3 Polypropylene Funnels, Set of Three with 75, 150 and 50ml Capacity set/3 $8.25
Qty:





Cotton Shop Cleaning Towels

Heavyweight cotton shop cleaning towels are highly absorbent and economical. Preferred rags for cleaning oils and grease or cleaning large areas. Ideal for cleaning up after oil changes on vacuum pumps, repairs or when oil drips out of the mist filter. 14% recycled cotton yarn blended with 86% new cotton. These blue cotton rags are pre-washed, soft, serged edges, low lint, heavyweight quality. Size is approximately 14" x 14" after washing. Sold in packs of 10.


Enlarged View of Towels

Prod # Description Unit Price Order / Quote
808-16 Cotton Shop Cleaning Towels, Blue, 14" x 14" pkg/10 $6.30
Qty:




Krytox® 1525 Vacuum Pumping Fluid

Krytox® 1525 Vacuum Pumping Fluid

Krytox® Perfluorinated Polyether (PFPE) inert vacuum pump fluid for corrosive and oxygen applications. Chemically inert pumping fluid with excellent lubrication properties. Used in chemical resistant pumps as used in plasma cleaning systems.
Typical Properties of Krytox® 1525 Vacuum Pumping Fluid

Prod # Description Unit Qty Price Order / Quote
891-42 Krytox® 1525 Vacuum Pumping Fluid, 1kg each 1+ $406.00
Qty:




diffusion pump oil

Santovac® 5 Diffusion Pump Oil

Santovac® 5 Polyphenyl Ether Vacuum Pump Fluid
excellent for TEM, SEM

Operates efficiently, economically and safely in diffusion pumps in properly designed systems to produce ultra-high vacuums in the 10-10 torr range. A wide liquid range, low vapor pressure and balance of properties make it an ideal working fluid in diffusion pumps.

Extremely low vapor pressure results in low ultimate pressures. The vapor pressure of Santovac® 5 at 25°C is 4 x 10-10 as determined by extrapolation from higher temperature data. Together with low backstreaming characteristics, 10-10 torr vacuums can be obtained in well designed systems without the use of nitrogen traps. Shelf life in sealed amber bottle 30-40 years when stored at ambient temperatures.

Low backstreaming. Santovac® 5 pump fluid can be used for electronic component manufacture, laboratory, analytical, instrument and research applications.

Santovac® 5 offers unusually high thermal and oxidation stability, with isoteniscope tests showing thermal stability at 465°C (870°F). May discolor with use but this does not affect its operation. Oxidation and corrosion tests, and field experience have shown that Santovac® 5 has little tendency to increase in viscosity during use.

SDS (90KB PDF)
Typical Properties of Santovac® 5 Diffusion Pump Oil

Prod # Description Unit Qty Price Order / Quote
Certain Export Restrictions Apply
891-50 Santovac® 5, Diffusion Pump Oil 100ml 1-9 $249.95
Qty:
10+ 237.45




Lion S diffusion pump oil

Lion S Diffusion Pump Oil

Lion S diffusion pump oil is a high quality alkyl naphthalene based diffusion pump oil, especially developed for applications such as electron microscopes, mass spectrometers and small vacuum systems. Recommended for TEMs and SEMs made by Hitachi, JEOL and ISI/ABT/Topcon equipped with a diffusion pump. No need for lower grade substitutes, this is the original LION S diffusion pump oil, manufactured by the Lion Corporation, Japan. It has been and is still used in diffusion pumps used in instruments manufactured in Japan. Lion S diffusion oil has a high resistance against oxidation and works well with small and medium size diffusion pumps.
SDS (PDF 2410KB)
Technical Notes (137KB PDF) Typical Properties of Lion S Diffusion Pump Oil

Prod # Description Unit Qty Price Order / Quote
891-55 Lion S Diffusion Pump Oil 100ml 1+ $74.50
Qty:
891-56 Lion S Diffusion Pump Oil 1000ml 1+ 396.40
Qty:





large pad

NEW Anti-Vibration Pads for Vacuum Pumps

Anti-vibration pads to be placed under rotary-vane backing pumps to dampen vibration. Soft closed-cell foam mat made of a blend of Buna-N, neoprene, and vinyl. Oil resistant and flame retardant. Available in two sizes. Smaller size #91020-27 is suitable for the VRI-2 and VRI-4 Pumps and larger #91020-29 size for the VRI-8, RVP, and VRP-series Pumps.

Small Pad Dimensions (shown left): 12 x 6 x 0.25" (30.5 x 15.2 x 0.6cm)
Large Pad Dimensions (shown right): 15 x 8 x 0.5" (38.1 x 20.3 x 1.3cm)

Prod # Description Unit Price Order / Quote
91020-27 Small Anti-Vibration Pad each $12.65
Qty:
91020-29 Large Anti-Vibration Pad each 28.50
Qty:




exhaust filter for 7010 and GD6 vacuum pumps
9609

Exhaust Filter for Small Rotary Vacuum Pumps, 1/4" NPT

(mist eliminators)

Filter for removing oil mist from vacuum pump exhaust in Prod. No. 7010, 7010-220, 91020 and 91020-230 Rotary Pumps or other rotary vane pump with NW/KF 16 output flange, such as the Pfeiffer Duo 3.0 and Uno 5.0 vacuum pumps. Creates a cleaner work environment for operators and surrounding equipment. Connection: 1/4" male NPT thread. With Product No. 92465-16 adapter, fits VRI-2 and VRI-4.

Prod # Description Unit Price Order / Quote
9609 Exhaust Filter, for #7010 or 7010-220 Rotary Pump. With Product No. 92465-16 Adapter, fits VRI-2 andVRI-4. each $71.20
Qty:
NW/KF Flange Adapter to ¼" Female NPT - Stainless Steel
92465-16 NW/KF 16 Adapter to ¼" Female NPT, 304 Stainless Steel, A=16mm, B=19mm each 24.00
Qty:




exhaust filters
92060 - 92061

Exhaust Filter for Vacuum Rotary Vane Pumps, 1/2" NPT

(mist eliminators)

Permits discharge into clean work areas. Return collected oil to sump or discard.
Rugged construction, simple installation. For non-hazardous, non-corrosive applications.
Fits on VRP 100-3.5, VRP-8, Edwards RV5, or similar. Connection: 1/2" male NPT thread.
Color of filter material may vary from white to yellow.

exhaust filter
92061 		Exhaust Filter Adapter
92466-25
Exhaust Filter Adapter,
NW/KF 25 to 1/2" NPT

Prod # Description Unit Price Order / Quote
92060 Exhaust Filter, Max Flow Rate 3CFM, 1/2" NPT (e.g., Edwards E2M2 or RV5 #92033/92033-220), including adapter. 1/2" female NPT to 3/4" BSPT with 1/4" NPT plug each $581.75
Qty:
92061 Exhaust Filter, Max Flow Rate 3CFM (e.g., RVP 100-3.5 #92080; Edwards E2M2 or RV5 #92033/92033-220), without adapter, 1/2" male NPT thread each 98.50
Qty:
92466-25 Exhaust Filter Adapter, NW/KF 25 to 1/2" NPT, stainless, for Model 100-3.5 #92080 each 35.00
Qty:




Compact Oil Mist Eliminator
92066 		Compact Oil Mist Eliminator replacement Cartridge
92066-10

Compact Oil Mist Eliminator

Compact Oil Mist Eliminator with KF25 connection and 1/8" drain plug. Max flow rate 10 CFM (5 ltr/sec or 16m³/hr (suitable for #92080, 92081, 92078, 92079, 92082, 92035 and 92035-220). Baked enamel steel housing, ø89 x 127mm H (ø3.5" x 5" H). Use replacement filter #92066-10.

Prod # Description Unit Price Order / Quote
92066 Compact Oil Mist Eliminator, including cartridge, NW/KF 25 each $214.40
Qty:
92066-10 Replacement Filter Cartridge for #92066 Oil Mist Eliminator and #92068 vacuum pump exhaust filter. each 76.00
Qty:




Two-Stage Vacuum Pump Exhaust Filter Assembled Two-Stage Vacuum Pump Exhaust Filter Kit

Two-Stage Vacuum Pump Exhaust Filter

For rotary vacuum pumps it is recommended that they should be vented outside the room or to a laboratory exhaust hood to prevent indoor air contamination. This two-stage vacuum pump exhaust filter kit enables venting rotary vacuum pumps in rooms where an outside line is either not practical or possible. The two stage filters contains a replaceable oil mist eliminator element to trap vacuum oil and a replaceable activated charcoal element for the lighter hydrocarbon fractions.

Features:
  • Provides a safe lab environment
  • Purifies vacuum exhaust gases
  • Separate replaceable elements for oil mist and lighter fractions
  • Only 6-1/4" tall with standard NW/KF 25 connection
  • Low cost solution
It is recommended that both filters are replaced on a regular basis. For application such as electron microscopes and mass spectrometers, the oil mist filters (#92066-10) need to be replaced every 4-6 months and the final activated charcoal filter (#92068-20) once a month. Rated for vacuum pumps up to 10 CFM (5 ltr/sec or 16m³/hr) (suitable for #92080, 92081, 92082, 92078, 92079, 92035 and 92035-220).

Prod # Description Unit Price Order / Quote
92068 Two-stage Vacuum Pump Exhaust Filter Kit, NW/KF 25 each $273.30
Qty:
92068-20 Replacement Activated Charcoal Filter Element for 92068 each 26.50
Qty:
92066-10 Replacement Oil Mist Eliminator Cartridge for 92068 each 76.00
Qty:




foreline trap

Foreline Traps

Highly recommended to prevent oil backstreaming from rotary vane pumps. Keeps your vacuum system clean in applications where pumps are running constantly such as mass specrometer, electron microscope, and vacuum drying systems. Protect vacuum gauges when mounted in front of the gauges. Includes a 150ml Activated Alumina charge (renew the charge every 3 months with Prod. No. 92090-50). These compact, reliable and efficient foreline traps offer maximum mounting flexibility and have the following features:

  • Orientation in any direction - spring-loaded sorbent basket
  • Positive creep-proof design with O-ring seal
  • Suitable for pumps up to 34m3/hr, 20cfm, 550 ltr/min
  • Leak tested to better than 2 x 10-9 scc/sec
  • Available in both Right Angle and Inline design
  • Available with both NW/KF 16 and NW/KF 25 flanges
  • No tools needed for easy sorbent replacement
  • Aluminum body and sorbent basket, 316 StS spring
  • Color may be black or aluminum

use with Alumina Sorbent #92090-50

 foreline trap

Prod # Description Unit Price Order / Quote
92090-10 Inline Style Foreline Trap NW/KF 16 each $432.00
Qty:
92090-20 Inline Style Foreline Trap NW/KF 25 each 441.00
Qty:
92090-30 Right Angle Foreline Trap NW/KF 16 each 432.00
Qty:
92090-40 Right Angle Foreline Trap NW/KF 25 each 432.00
Qty:




PELCO® Activated Alumina Sorbent

PELCO® Activated Alumina Sorbent for Foreline Traps

The activated alumina sorbent is used in foreline traps to prevent backstreaming from rotary pumps or to shield vacuum gauges from contamination. PELCO® Activated Alumina Sorbent can be used in foreline traps from VRL, BOC-Edwards, Alcatel/Adixen, Varian, Leybold, Sargent-Welch, Ulvac and other brands. The small pores (2-50nm) and the non uniform pore distribution in the PELCO® Activated Alumina Sorbent provide the large surface area of 350 m²/gram. With this large internal surface area, the activated alumina sorbent attracts and holds gas molecules to which it is exposed. PELCO® Activated Alumina Sorbent is activated at 350°C (662°F) to less than 1% water and it is capable of holding 43% water (by weight) or in the foreline trap application, oil. The relatively uniform 1/4" diameter size makes it ideally suited for charging perforated mesh canisters as used in foreline traps.
Also recommended for drying gases and refrigerants and for applications where extremely low dew points are desirable.

Packed in a 450ml metal can with sealed lid.

SDS (92KB PDF)

Prod # Description Unit Price Order / Quote
92090-50 PELCO® Activated Alumina Sorbent, 450ml each $19.50
Qty:
