Current techniques involving the use of acrylic resins and dry ice temperatures for
electron microscopy embedding require ultraviolet polymerization in many instances.
Gelatin capsules have found a renewed popularity with these applications. Also useful
for specimen storage, shipping and carrying of small specimens, apertures, and calibration
specimens.
Be sure to pre-dry capsules before use. Flushing with dry nitrogen is recommended
before resins are added to the capsules.
|
Size
|
Length
mm
|
Diameter
mm
|
Volume
ml
|
|
000
|
26.14
|
9.55
|
1.37
|
|
00
|
23.30
|
8.18
|
0.95
|
|
0
|
21.20
|
7.34
|
0.68
|
|
1
|
19.00
|
6.63
|
0.50
|
|
2
|
17.50
|
6.07
|
0.37
|
|
3
|
15.50
|
5.56
|
0.30
|
|
4
|
13.90
|
5.05
|
0.21
|
| Prod #
| Description
| Unit
| Price
| Order / Quote
|
| 130-12
| Snap-Fit Gelatin Capsules, size 000
| pkg/1000
| $80.00
|
|
| 130-14
| Snap-Fit Gelatin Capsules, size 00
| pkg/1000
| 17.75
|
|
| 130-16
| Snap-Fit Gelatin Capsules, size 0
| pkg/1000
| 24.00
|
|
| 130-18
| Snap-Fit Gelatin Capsules, size 1
| pkg/1000
| 13.97
|
|
| 130-19
| Snap-Fit Gelatin Capsules, size 2
| pkg/1000
| 34.70
|
|
| 130-21
| Snap-Fit Gelatin Capsules, size 3
| pkg/1000
| 34.70
|
|
| 130-20
| Snap-Fit Gelatin Capsules, size 4
| pkg/1000
| 34.70
|
|

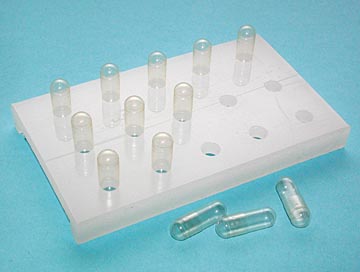

Gelatin Capsule Holders
holds 18 or 32 gelatin capsules for embedding
 |
 |
Gelatin Capsule Holders for 18 Capsules
#130-12H shown holds 18
size 000 capsules |
Gelatin Capsule Holders for 32 Capsules
#130-21H shown holds
32 size 3 capsules |
| Prod #
| Description
| Unit
| Price
| Order / Quote
|
| 130-12H
| NEW Gelatin Size 000 Capsule Holder, Holds 18 Capsules
| each
| $25.00
|
|
| 130-15
| Gelatin 00 Capsule Holder, Holds 18 Capsules
| each
| 25.00
|
|
| 130-16H
| NEWGelatin Size 0 Capsule Holder, Holds 18 Capsules
| each
| 25.00
|
|
| 130-18H
| NEW Gelatin Size 1 Capsule Holder, Holds 18 Capsules
| each
| 25.00
|
|
| 130-19H
| NEW Gelatin Size 2 Capsule Holder, Holds 32 Capsules
| each
| 25.00
|
|
| 130-21H
| NEW Gelatin Size 3 Capsule Holder, Holds 32 Capsules
| each
| 25.00
|
|
| 130-20H
| NEW Gelatin Size 4 Capsule Holder, Holds 32 Capsules
| each
| 25.00
|
|
Ambrose Mesa Mold
holds 12 size 00 gelatin capsules for embedding
  |
| Specimens are embedded against the large flat bottom surface of the mold, 7mm in
diameter, for improved orientation. A BEEM® size 00 capsule with the
tip removed can be inserted part way into the cavity, before filling with the plastic.
Blue silicone rubber. Maximum temperature: 218°C (425°F).
Number of Cavities: 12
Numbering Outside of Cavities: 1-12
Mold Size: 97 x 38 x 11mm thick
| Prod #
| Description
| Unit
| Price
| Order / Quote
|
| 107
| Ambrose Mesa Mold
| each
| $19.50
|
|
|
